Description

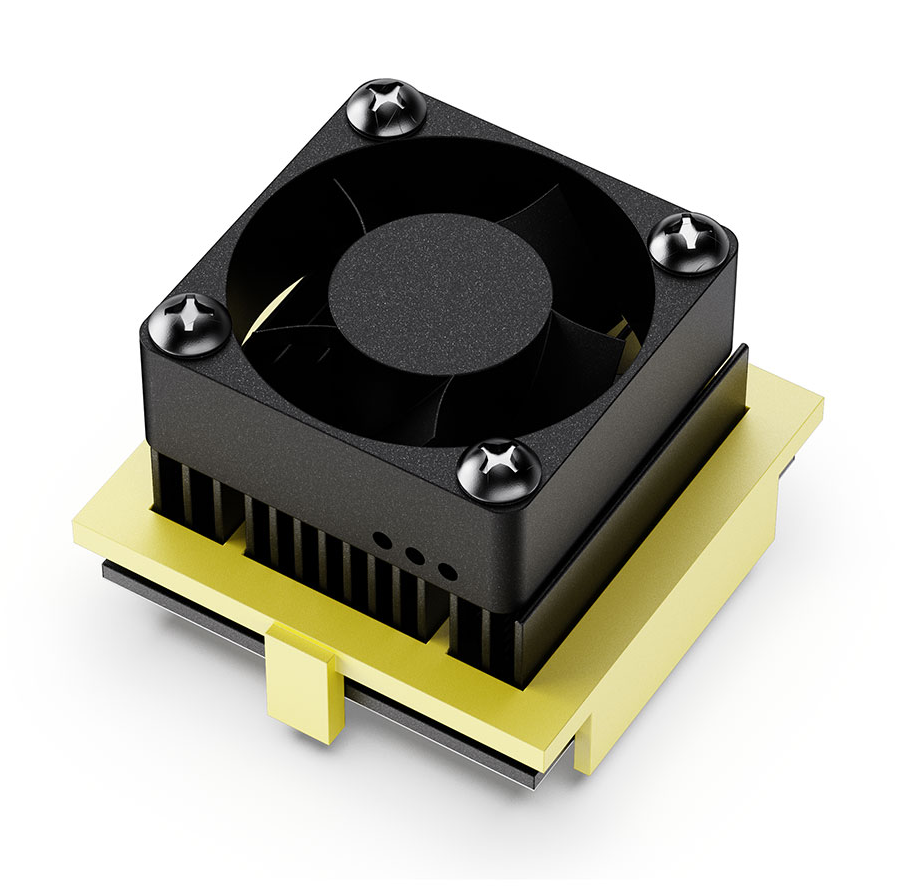

35mm BGA 12V Fansink
| Part | Type | Material | Width (mm) | Length (mm) | Height (mm) | Theta SA | Voltage |
|---|---|---|---|---|---|---|---|
| FA35 | Clipon Fansink | Aluminum | 35 | 35 | 24.6 | 1.7 | 12V |
Fan Details
| Bearing | Current | Power | Speed | Airflow | Noise (dB) | Air Pressure | Fan Lifetime (hrs) |
|---|---|---|---|---|---|---|---|
| Ball | 0.12 | 1.44 | 9000 | 4.1 | 27.9 | 0.148 Inch water | 50,000 |
Fan Wiring
| Connector | Pin 1 | Pin 2 | Pin 3 | Wire Length |
|---|---|---|---|---|
| Molex 22-01-3037 using 08-50-0114 pins | Ground (Black) | 12V (Red) | Tach (color may vary) | 300 |
A Clipon Fansink provides additional airflow for tough thermal environments while not requiring any board changes and is designed for BGA chipsets that mount with a EZ Snap™ clip that requires no special board modifications.
Use clip tool HS8132 to attach (or remove) heatsink directly to BGA chip
